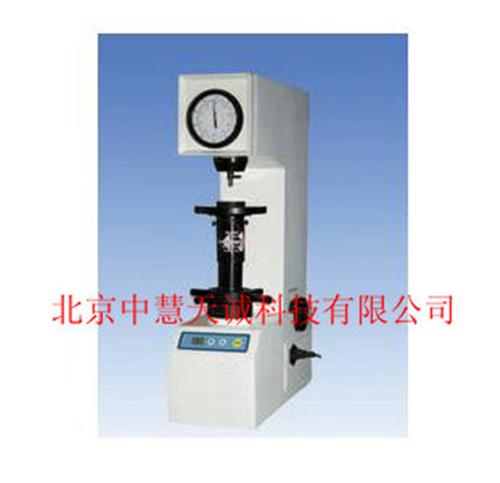

电动表面洛氏硬度计是一种通过电动加载、保荷卸荷的半自动测试金属材料表面硬度的洛氏硬度计。具有操作%简便、压痕微小、精度高等特点。
适用范围
表面淬火钢，铜、铝合金薄板，带钢,硬质合金钢，镀锌，镀铬，镀锡，材料表面热处理和化学表面处理的%种金属材料。
Motorized Superficial Rockwell Hardness Tester adopts motorized testing method. Its testing force can be loaded, kept and unloaded automatically. Avoid man-made error and easy to use. The characteristics of the instrument is light testing force and therefore, leaving very small indentation.
Usage Range:
Surface hardened steel, copper, aluminum alloy thin sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface hardened treating and chemical treating materials, etc.
，数据（Technical Specifications）
|
表面洛氏标尺 (Superficial Rockwell Scales) |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
|
初试验力（Initial Testing Force） |
3Kg(29.42N) |
|
试验力（All Testing Force） |
15Kg(147.1N),30Kg(294.2N),45Kg(441.3N) |
|
硬度读取 (Indication of Hardness Value) |
表盘式（Dial ） |
|
保菏时间(Duration Time) |
2 ~ 60S |
|
试件，高度 Max. Height of Specimen |
170mm |
|
仪器尺寸(长X宽X高) (Overall Dimension：LXWXH) |
520X240X700MM |
|
仪器重量(Net Weight) |
80 Kg |
|
电源( Power Supply) |
AC220V + 5%, 50~60 Hz |
|
执行标准 (Carried Standard) |
GB/T230.2 ，标准、JJG112检定规程 GB/T230.2 Chinese Standard and JJG112 Testing Rule |
|
标准配件、附件 (Standard Accessories) |
金刚石洛氏压头，直径1.5875mm硬质合金球压头，大平试抬、中平试台、V型试台，硬度块，电源线等 Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table,HR30N and HR30T Hardness Blocks , Power Cable, etc |
