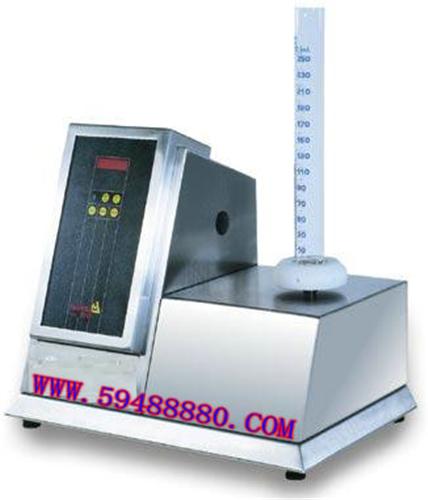

产品简介:
振实密度计， ，美国药典、欧洲药典、德国药典等标准。
250ml／100ml 量筒，LED 显示
振动次数， 自动控制。
振动频率： 250 ± 10 次/分钟
振动高度：3.0 ± 0.1 mm
振动次数： 1-9999 之间可调。
可测6个参数： 流动性，流动时间， 休止角 ，密度，体积， 流动性重量曲线。
结果可液晶显示。
RS 232 接口和打印机接口。
TDJK1/PTG-S3 Powder Testing System to test 6 different powder characteristisc, flow-time, cone angle, flowability acc. toEP/DAB pharmacopoeia, cone density, cone volume, powder flow chart. The PTG S3 system includes a built-in Sartorius precision balance cell, maximum range 510 g, 1 mg resolution and a built-in thermo printer. The user is guided by a LCD display through the operation task, foil cover alpha numerical keyboard to enter test descriptions, operating program selection, RS-232 data interface and printer port, incl. 100 ml powder funnel, 1 set of pouringnozzles 6,8,10 mm, powder receipt and overflow receiptplate, EP conical stainless steel funnel, 10,15 and 25 mmpouring nozzle and stirrer insert, instrument suitable ，erform flowability test according to EP/DABpharmacopoeiaTest program and measuring ranges:
- cone angle: 0.5° - 45.0°
- flow time: 0.1s to 1 h
- adjust funnel opening time: 1 s - 10 min.
- flowability: 100.0 g of powder- density: 0.001 g/ml - 9.999 g/ml
- volume: 0.1 ml - 999.0 ml
- powder weight flow chart: 0.1 g - 500 G
